Spoke Type Trailer Axles
Spoke axle
Model Number:JZS10Y70S121820
Spoke hub trailer axles are designed with a traditional spoke wheel mounting system, providing strong structural support and excellent durability for heavy-duty transport applications. Unlike disc wheel axles, spoke axles use a spoke hub structure to secure the wheel, offering improved resistance to impact and harsh working conditions.
The open spoke design allows better airflow around the hub and brake components, improving heat dissipation and reducing the risk of overheating. This makes spoke hub axles particularly suitable for long-distance transport, construction environments, and off-road applications.
Jiuzhou Machinery supplies high-quality spoke hub trailer axles with customizable configurations, ensuring reliable performance and easy maintenance in demanding transport conditions.
Spoke axles are widely used in:
• Heavy-duty trailers
• Construction transport vehicles
• Mining and industrial transport
• Regions with rough road conditions
Why Choose Our Spoke Axles？
Our spoke axles are engineered for durability and high-load performance, making them suitable for demanding transport environments. With strong structural design and reliable hub systems, they provide long service life and efficient operation.
1.Lightweight Spoked Wheel Design
The spoked structure minimizes overall axle weight, improving vehicle efficiency while maintaining necessary strength for heavy loads.
2.Durable Steel Axle Beam
Constructed with high-strength steel, the axle beam offers excellent resistance to bending and torsional forces in various operating conditions.
3.Grease-Lubricated Hubs
Equipped with grease-lubricated hubs that facilitate easy maintenance and reduce friction, resulting in longer service intervals.
4.Wide Suspension Compatibility
Designed to fit a range of suspension widths, the axle integrates seamlessly into different trailer models for flexible application.
What Is a Spoke Axle？
A spoke axle is a type of trailer axle designed to work with spoke wheel hubs. Instead of using standard hub-mounted wheels, spoke axles connect to wheels through a spoke-style hub system, which provides strong load-bearing capacity and flexible wheel replacement.
This design is commonly used in heavy-duty transport applications where durability and adaptability are essential.

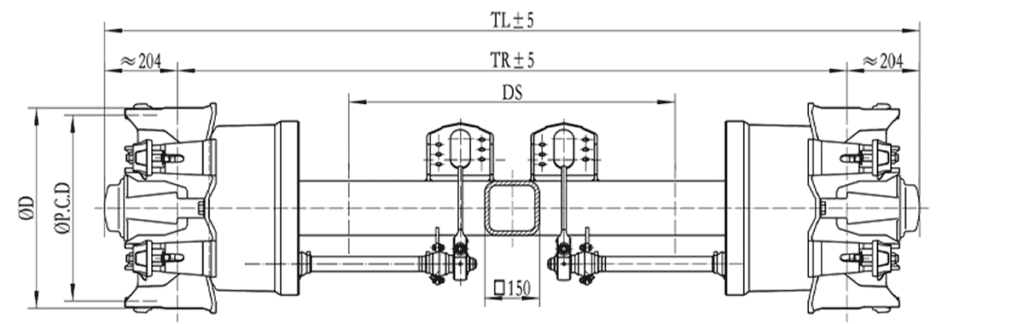

| Model | Capacity(T) | Axle Beam Size | Brake(mm) | Track | Distance of Spring(mm) | Distance of Brake Chamber(mm) | Wheel Fixing | Total Length(mm) | Recommended | Axle Weight(kg) | |||||
| Stud | P.C.D(mm) | H(mm) | |||||||||||||
| JZS10Y70S121820 | 10 | o127 | S420*180 | 1820 | ≥950 | 365 | 6*3/4″10 | 11.25″ | 9.44″ | ~2170 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS10K70S121820 | 10 | 127*127 | S420*180 | 1820 | ≥950 | 365 | 6*3/4″10 | 11.25″ | 9.44″ | ~2170 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS11Y70S141850 | 11 | o127 | S420*180 | 1850 | ≥980 | 395 | 6*3/4″10 | 11.25″ | 9.44″ | ~2200 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS11Y70S141820 | 11 | o127 | S420*180 | 1820 | ≥950 | 365 | 6*3/4″10 | 11.25″ | 9.44″ | ~2170 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS11Y70S141820 | 11 | o127 | S420*180 | 1820 | ≥950 | 365 | 6*3/4″10 | 11.25″ | 9.44″ | ~2170 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS12Y70S171820 | 12 | o127 | S420*180 | 1820 | ≥950 | 365 | 6*3/4″10 | 11.25″ | 9.44″ | ~2170 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS12Y70S171840 | 12 | o150 | S420*180 | 1840 | ≥980 | 367 | 6-M20*2 | 11.25″ | 9.44″ | ~2190 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS12Y70S171840(T) | 12 | o150 | S420*180 | 1840 | ≥980 | 253 | 6-M20*2 | 11.25″ | 9.44″ | ~2136 | Six Spoke Wheel8.0-20 | 350~400 | |||
| JZS13Y70S181840 | 13 | o150 | S420*180 | 1840 | ≥940 | 385 | 6*3/4″10 | 11.25″ | 9.44″ | ~2190 | Six Spoke Wheel8.5-24 | 350~400 | |||
| JZS14Y70S211840 | 14 | o150 | S420*200 | 1850 | ≥900 | 265 | 6-M20*2 | 11.25″ | 9.44″ | ~2300 | Six Spoke Wheel8.5-24 | 350~400 | |||
| JZS18Y70S251840 | 18 | o150 | S420*180 | 1840 | ≥900 | 255 | 6-M20*2 | 11.25″ | 9.44″ | ~2240 | Six Spoke Wheel8.5-24 | 350~400 | |||
Key Features of Spoke Axles
• Designed for spoke wheel systems
• High load-bearing capacity
• Easy wheel replacement and maintenance
• Strong adaptability in harsh environments
Spoke Axle vs Standard Hub Axle
Feature Spoke Axle Standard Hub Axle
Wheel Type Spoke wheel Disc wheel
Maintenance Easier wheel replacement Standard
Load Capacity High Standard
Application Heavy-duty / rugged use General transport
