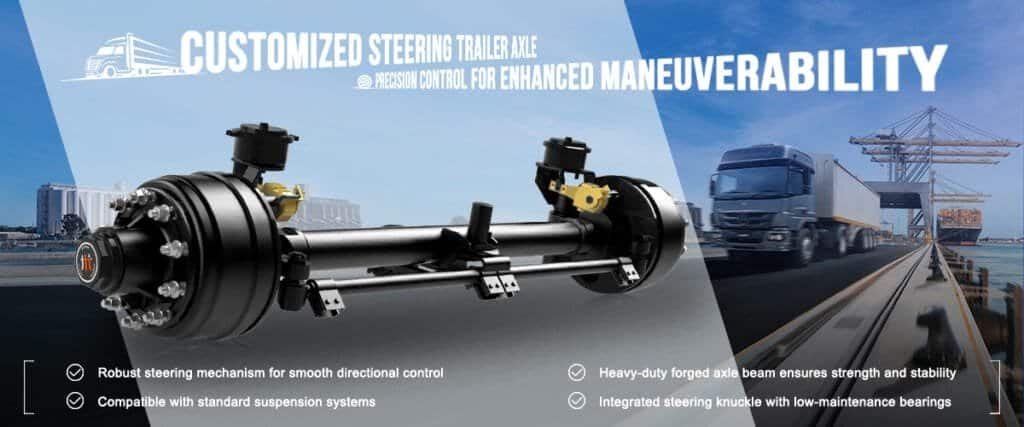

Steering axle
Model Number:JZS10Y70S121820
The steering axle helps improve turning radius, reduces lateral tire slip, and enhances stability during cornering, especially for long or heavy trailers.
Byword:trailer steering axle,steering axle for trailers,heavy-duty steering axle,low-bed trailer steering axle,hydraulic steering axle,mechanical steering axle,articulated trailer axle
Classification: Products Trailer Axles Steering Axles
E-mail:969594273@qq.com
- Reinforced One-Piece Forged Beam – Built for Heavy Road Loads
Crafted from high-tensile solid steel with a one-piece forged structure, this axle offers excellent strength and bending resistance, ideal for rugged and long-distance transport routes common in Brazil, Peru, and Chile. - Optimized Drum Brake System – Reliable in Harsh Conditions
Equipped with high-durability American-style brake drums and hubs, the axle performs stably under mountain roads, gravel surfaces, and variable weather. Optional oil-lubricated design enhances cooling and reduces maintenance. - Compatible with South American Suspension Types
Available in standard track widths (71.5”, 77.5”, 85.5”), and fits most American mechanical or air suspension systems used across Latin American trailer fleets. Replacement parts are easily sourced and service-friendly. - Proven in Latin American Transport Scenarios – Trusted Export Quality
Widely applied in flatbed, skeleton, container, and dump trailers across South America. Exported in large volumes to Brazil, Argentina, Chile, and Bolivia. Recognized for stable performance, strong load capacity, and long-term durability.
| Model | Max. Capacity (T) | Axle Beam Size | Brake(mm) | Center distance of chamber(mm) | Track(mm) | Wheel Fixing | Bearing(inner) | Bearing(outer) | |||||
| Stud | P.C.D(mm) | H(mm) | |||||||||||
| JZS10Y70S121820 | 20 | 150*150 *22 | o420x220 | 1547 | 2540 | ISO-10*M24*1.5 | 335 | 280.8 | 32222 | HM518445/10 | |||
