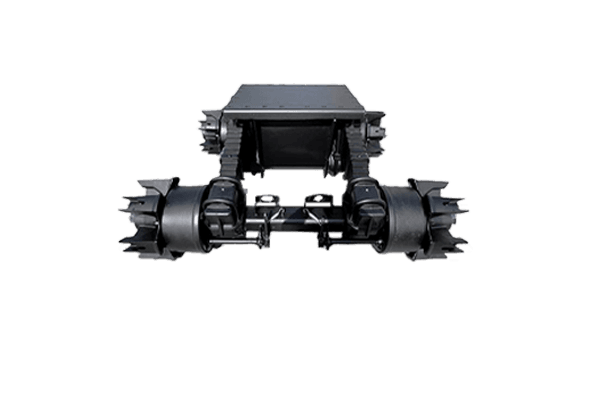

Spoke bogie
Model Number:JZB24A01-T(31)
The spoke-type single point suspension is a critical suspension solution for heavy-duty trailers. With its simple but reinforced structure, it delivers superior durability, high load efficiency, and reduced maintenance cost. It has become the preferred choice for logistics companies operating in long-haul, bulk transport, and heavy-load industries.
Byword:Trailer Single Point Suspension, Spoke-Type Suspension, Heavy Duty Suspension System, Semi-Trailer Suspension
Classification: Products Trailer Suspensions Single Point Suspensions
E-mail:969594273@qq.com
1.Specialized Design for Spoked Wheel Rims
Engineered specifically to fit spoked wheel rims, providing optimal compatibility and enhanced wheel stability during operation.
2.Multi-Axle Suspension Bogie
Combines multiple axles into a single suspension unit, delivering improved load balance and vehicle handling on rough terrains.
3.High-Strength Forged Axle Beams
Manufactured with forged steel, the axle beams offer exceptional durability, resistance to bending, and long service life.
4.Wide Suspension Compatibility
Compatible with a range of suspension systems, making it adaptable for various trailer types and heavy-duty applications.
| Model | Max. Capacity(T) | Axle Beam Size | Brake (mm) | Track (mm) | Wheel Base(mm) | Leaf Spring Center Distance (mm) | Spring Width/QTY (mm) | Panel Dimension (mm) | P.C.D (mm) | Stud | Bearing | Recommended Wheel |
| JZB24A01-T(31) | 24 | 150*150 | S420*180 | 1800 | 1400 | 900 | 90*18 | 980*700*12 | 335 | 6-M22*2 | 33213 33118 | 8.2V-24 147-24 |
| JZB24A01-T(31) | 24 | 150*150 | S420*200 | 1840 | 1400 | 980 | 90*18 | 1060*700*12 | 335 | 6-M22*2 | 33213 33118 | 8.5V-24 147-24 |
| JZB28B01-T(31) | 24 | 150*150 | S420*200 | 1840 | 1550 | 900 | 120*19 | 980*800*12 | 335 | 6-M22*1.5 | 33215 33119 | 8.5V-24 147-24 |
| JZB28B01-T(31) | 28 | 150*150 | S420*200 | 1840 | 1550 | 900 | 120*17 | 980*800*12 | 335 | 6-M22*1.5 | 33314 32222 | 8.5V-24 147-24 |
