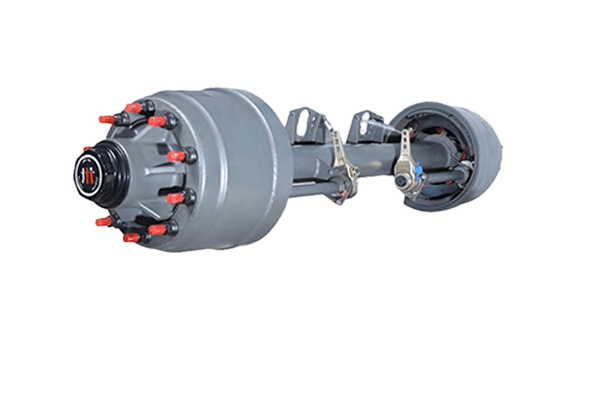

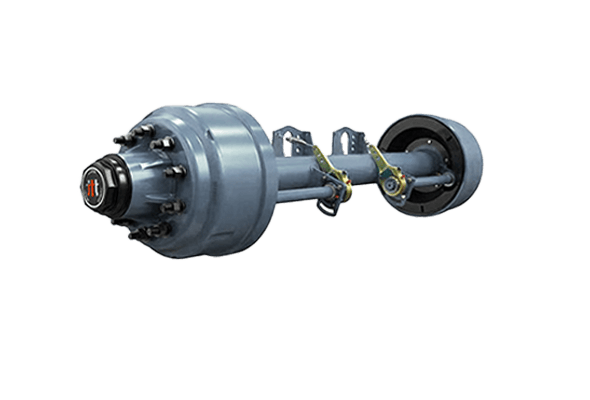

American type built-in axle
Model Number:A10TFAJ04N05
Made in China USA 10 tons of built-in brake drums USA 13 tons of built-in brake drums USA 14 tons of built-in brake drums USA 15 tons of built-in brake drums USA 16 tons of built-in brake drums USA.
Byword:American semi-trailer axle Trailer parts
Classification: Products Trailer Axles American Type Axles
E-mail:969594273@qq.com
1.Heavy-Duty Forged Beam
Crafted from premium steel and heat-treated for extra durability, the axle beam resists bending and stress under full loads, ensuring safety and long-term performance.
2.Reliable Inboard Brake System
The enclosed brake structure delivers powerful, stable braking while reducing exposure to dust and mud—ideal for rugged use in transportation, mining, or agricultural settings.
3.Flexible Lubrication Options
Supports both oil-bath and grease lubrication methods, giving users the freedom to adapt to local maintenance habits and climate conditions.
4.Universal Suspension Compatibility
Engineered to match industry-standard 71.5”, 77.5”, and 85.5” suspension widths, making it easy to integrate into existing trailer systems with minimal modifications.

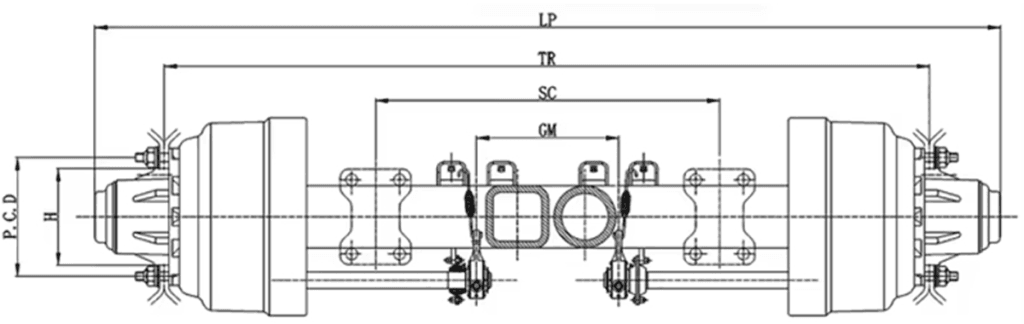

| Model | Max. Capacity (T) | Axle Beam Size | Brake(mm) | Plate spring spacing (mm) | Center distance of chamber(mm) | Track(mm) | Studs(mm) | P.C.D(mm) | oH | Ttal Length(mm) | Recommender Wheel |
| A10TFAJ04N05 | 10 | 150*150 | o420x125 | ≥990 | 490 | 1820 | 10*M22*1.5 | 285.75 | 221 | 2215 | 7.5v-20 |
| A12TFAJ04N06 | 12 | 150*150 | o420x155 | ≥940 | 490 | 1820 | 10*M27*1.5 | 285.75 | 221 | 2155 | 7.5v-20 |
| A13TYAA05N01 | 13 | o127 | o420x180 | ≥930 | 368 | 1820 | 10*M20*1.5 | 285.75 | 221 | 2165 | 7.5v-20 |
| A13TYAAOINO1 | 13 | o127 | o420x180 | ≥930 | 368 | 1820 | 10*M22*1.5 | 335 | 281 | 2165 | 7.5v-20 |
| A13TFAJ07N01 | 13 | 150*150 | o420x180 | ≥930 | 490 | 1840 | 10*M22*1.5 | 285.75 | 221 | 2115 | 7.5v-20 |
| A13TFAAO5N01 | 13 | 150*150 | o420x180 | ≥940 | 390 | 1840 | 10*M22*1.5 | 285.75 | 221 | 2185 | 7.5v-20 |
| A13TFAA0IN01 | 13 | 150*150 | o420x180 | ≥940 | 390 | 1840 | 10*M22*1.5 | 335 | 281 | 2185 | 7.5v-20 |
| A14TFAAOIN03 | 14 | 150*150 | o420x220 | ≥940 | 350 | 1840 | 10*M22*1.5 | 335 | 281 | 2185 | 7.5v-20 |
| A1STYABOINOI | 15 | o127 | o420x180 | ≥940 | 396 | 1850 | 10*M22*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A15TFABOIN01 | 15 | 150*150 | o420x180 | ≥940 | 396 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A16TYABOIN03 | 16 | o127 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A16TFABOIN03 | 16 | 150*150 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A20TFAC02N03 | 20 | 150*150 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2270 | 8.5V20 |
| A25TFAE02N03 | 20 | 150*150 | o420x220 | ≥940 | 340 | 1850 | 10*M24*1.5 | 335 | 281 | 2230 | 8.5V20 |
