American style Axle
Model Number:12T
Made in China U.S.A. 10-ton external brake drum axle U.S.A. 13-ton external brake drum axle U.S.A. 16-ton external brake drum axle U.S.A. 20-ton external brake drum axle
Byword:American semi-trailer axle Trailer parts
Classification: products Trailer axle American style axle
E-mail:969594273@qq.com
1.New brake system
Featuring mechanical and thermal sta-bility, low peak stress,low noise and other advantyage, the brake is sensitive and efficlent
and increases the braking caoacity greatly by 30%.
2.Long servince life oil seal
Hig-temperature resitant and long service life oil seal effectivety prevents dust and moisture from entering the wheel cavity..
3.High-precision hub
High precision hub unit ensures accu-rate pre assmbly of bearing and even bearing load,When the hub is disassem-bled,the
circlip keeps the oil seal together with the bearing inside the hub to ensure the integrity and cleanliness of the hub assmbly.
4.Easy disassembly and assembly
It is easy to assemble and disassemble the hub system, so the replacement of the brake pad is very simple.

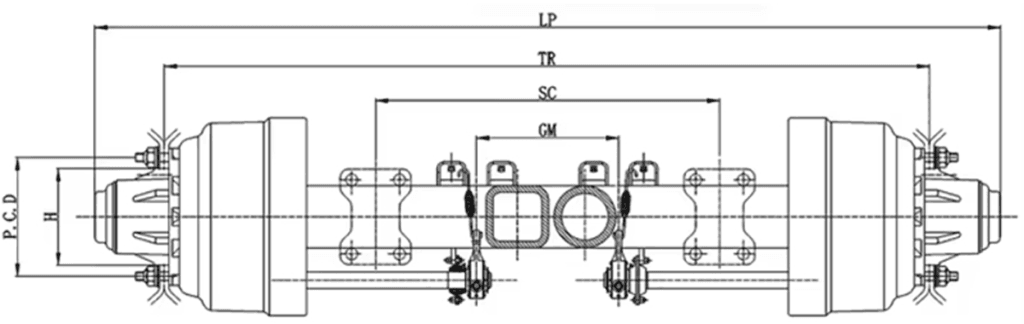

| Model | Max. Capacity (T) | Axle Beam Size | Brake(mm) | Plate spring spacing (mm) | Center distance of chamber(mm) | Track(mm) | Studs(mm) | P.C.D(mm) | oH | Ttal Length(mm) | Recommender Wheel |
| A10TFAJ04N05 | 10 | 150*150 | o420x125 | ≥990 | 490 | 1820 | 10*M22*1.5 | 285.75 | 221 | 2215 | 7.5v-20 |
| A12TFAJ04N06 | 12 | 150*150 | o420x155 | ≥940 | 490 | 1820 | 10*M27*1.5 | 285.75 | 221 | 2155 | 7.5v-20 |
| A13TYAA05N01 | 13 | o127 | o420x180 | ≥930 | 368 | 1820 | 10*M20*1.5 | 285.75 | 221 | 2165 | 7.5v-20 |
| A13TYAAOINO1 | 13 | o127 | o420x180 | ≥930 | 368 | 1820 | 10*M22*1.5 | 335 | 281 | 2165 | 7.5v-20 |
| A13TFAJ07N01 | 13 | 150*150 | o420x180 | ≥930 | 490 | 1840 | 10*M22*1.5 | 285.75 | 221 | 2115 | 7.5v-20 |
| A13TFAAO5N01 | 13 | 150*150 | o420x180 | ≥940 | 390 | 1840 | 10*M22*1.5 | 285.75 | 221 | 2185 | 7.5v-20 |
| A13TFAA0IN01 | 13 | 150*150 | o420x180 | ≥940 | 390 | 1840 | 10*M22*1.5 | 335 | 281 | 2185 | 7.5v-20 |
| A14TFAAOIN03 | 14 | 150*150 | o420x220 | ≥940 | 350 | 1840 | 10*M22*1.5 | 335 | 281 | 2185 | 7.5v-20 |
| A1STYABOINOI | 15 | o127 | o420x180 | ≥940 | 396 | 1850 | 10*M22*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A15TFABOIN01 | 15 | 150*150 | o420x180 | ≥940 | 396 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A16TYABOIN03 | 16 | o127 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A16TFABOIN03 | 16 | 150*150 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2200 | 8.0V20 |
| A20TFAC02N03 | 20 | 150*150 | o420x220 | ≥940 | 354 | 1850 | 10*M24*1.5 | 335 | 281 | 2270 | 8.5V20 |
| A25TFAE02N03 | 20 | 150*150 | o420x220 | ≥940 | 340 | 1850 | 10*M24*1.5 | 335 | 281 | 2230 | 8.5V20 |
